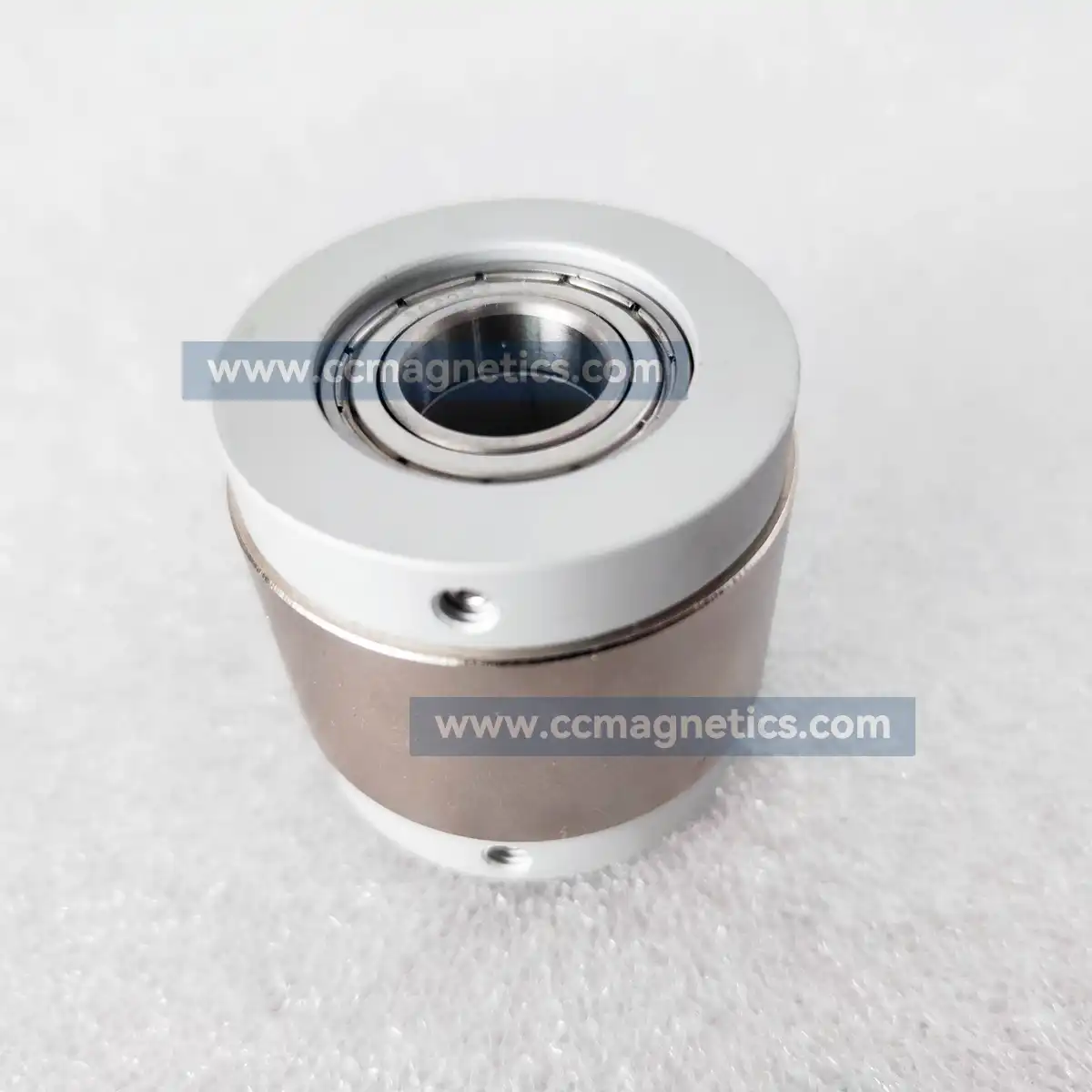

What are parallel type magnetic gears?
Parallel type magnetic gears, contactless torque transmission. parallel type magnetic gears are able to transmit torque between an input and an output shaft without mechanical contact. Due to their contactless torque transmission, magnetic gears are efficient and allow high rotational speeds. Furthermore, they are highly reliable and provide inherent overload protection.
Parallel type magnetic gears is non-contact power transmission device by magnetic atraction repulsion force
Since partition wall transmission is possible, it is widely used in clean rooms, food machinery applications, transportation equipment, conveyor, pumps, etc.
The parallel type magnetic gears eliminate micro-step vibration or driving noise caused by mechanical gears. Recommended for precision devices handling due to less influence of vibration, no wear-out of gear.
How do parallel type magnetic gears work?
The magnetic poles of parallel type magnetic gears are tilted, so when they come into contact, they transmit torque at a right angle. This process is demonstrated in the image below.
The parallel type magnetic gears parameter
Drawing / Specifications
| Part Number |
A | D | L | G | F | M | Pole Qty |
Torque (Gap:1mm) |
|---|---|---|---|---|---|---|---|---|
| PT1308P | 13 | 10,15,20 | 15 | 10 | 2.5 | M2.5 | 10P | 2.2N.m |
| PT1612P | 16 | 6,8 | 13 | 8 | 2.5 | M2.5 | 12P | 0.05N.m |
| PT2108P | 21 | 8,10,12 | 21 | 15 | 3 | M4 | 8P | 0.2N.m |
| PT2218P | 22 | 12,10,8 | 18 | 12 | 3 | M4 | 18P | 0.13N.m |
| PT2412P | 24 | 10,12 | 19 | 12 | 3.5 | M4 | 12P | 0.4N.m |
| PT2612P | 26 | 8,10,12,15 | 21 | 14 | 3.5 | M4 | 12P | 0.45N.m |
| PT2618P | 26 | 8,10,12,15 | 21 | 14 | 3.5 | M4 | 18P | 0.21N.m |
| PT2812P | 28 | 10,12,15 | 25 | 14 | 3.5 | M4 | 12P | 0.32N.m |
| PT3010P | 30 | 8,10,12,15 | 25 | 18 | 3.5 | M4 | 10P | 0.39N.m |
| PT3210P | 32 | 10,12,15 | 30 | 20 | 4 | M4 | 10P | 0.8N.m |
| PT3512P | 35 | 10,12,15,20 | 32 | 21.5 | 5.25 | M5 | 12P | 1.1N.m |
| PT3518P | 35 | 10,12,15,20 | 32 | 21.5 | 5.25 | M5 | 18P | 0.7N.m |
| PT3916P | 39 | 10,15,20 | 35.8 | 26.5 | 5 | M5 | 16P | 1.5N.m |
| PT4510P | 45 | 10,15,20 | 34 | 25 | 4 | M5 | 10P | 2.2N.m |
Test report of magnetic gear
Please Note:
1.Since we are magnetic gear original factory, support customization of different fixing methods.
2.Strong impacts may cause damage and lead to deterioration in magnetic force.
3.The following objects are affected by strong magnetic fields:cellphones.PCs.Watches.Pacemakers.
4.Due to its non-contact design.it is not suitable for extremely high-speed rotation.(Max.speed:1500 rpm).
5.The operating temperature is -20°C-80°C. Since we are an original factory, we can customize it to: -20°C-150°C.
FAQ for parallel type magnetic gears
Do you offer a quantity discount? I.e., 10, 25, 50, 100, 150 sets?
Absolutely. We offer discounts for bulk orders. The larger the quantity, the greater the discount. [...]
Learn More...Will there be any backlash while using the Magnetic Drives( Gear/ Couplings ) ?
This product generates no backlash. Most rotary transmission components like belts and gears are known [...]
Learn More...What should you pay attention to when choosing a non-contact transmission?
The weight of the shaft used in the design, Natural rotational resistance (bearing grease, etc.) [...]
Learn More...Can non-contact transmissions generate heat or static electricity at high rotational speeds?
Due to its non-contact design, magnetic transmission is not suitable for operation at high rotational [...]
Learn More...Why use rare earth magnets rather than regular magnets?
Rare earth magnets have the highest energy product of all permanent magnets, permitting the small [...]
Learn More...How long will the magnets last?
The half-life of the magnets is 2,000 years. RELATED PRODUCTS
Learn More...What is the maximum gap size allowed for non-contact magnetic drive gears?
The size of the magnetic wheel is different, and the gap will be different. Generally, [...]
Learn More...Can contactless magnetic drives be used underwater?
It can be used underwater. You need to tell us when placing an order so [...]
Learn More...
What are the applications for magnetic gears?
Magnetic gears are utilized in conveyors frequently. They serve to transport items such as LCDs, [...]
