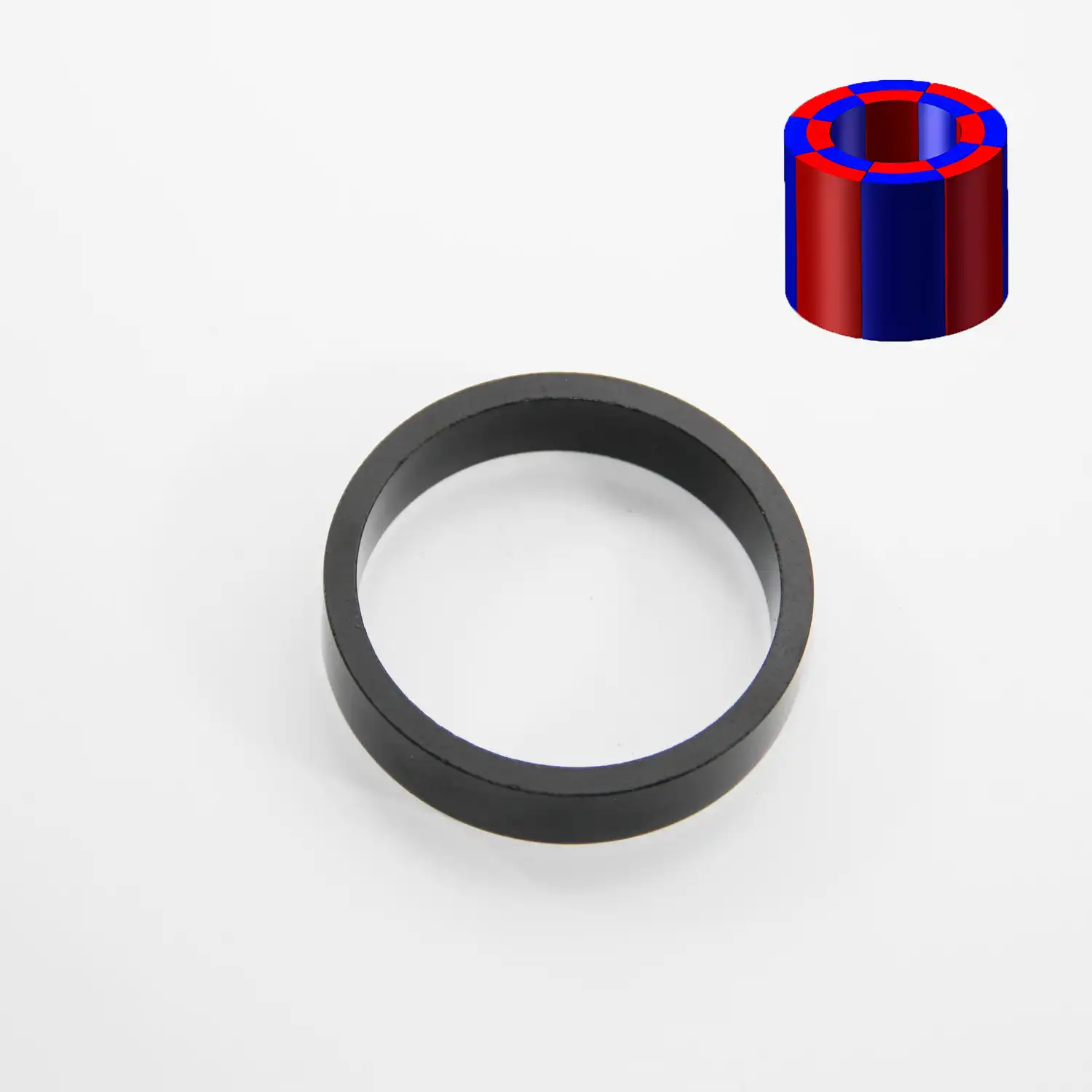

Multipole Radial Ring Neodymium Magnets for Servo Motors O.D 43mm/1.69in, 10poles

$10.95

  • High magnetic performance,with (BH)max in magnet radial direction reaching 342kJ/m3.
  • The magnet ring is radially-oriented with uniform magnetic field,which can guarantee silent motor
    operation and smooth torque output.
  • The magnet has high temperature resistance,with working temperature reaching 200°C.
  • The magnetic pole number and skew angle of the magnet shall not be necessarily pre-designated at
    pressing process,but changed by adjustment of magnetization yoke,which can guarantee greater
    design freeness for customers.
  • The magnet is Nano-crystalline structure with high density and ED coating with excellent corrosion resistance.
inquiry
SKU: ccm19-15 Categories: ,

Hot-Pressed NdFeB Ring Magnets Description

Hot-pressed magnets are the result of the bonding between thermoplastic binders and permanent magnet powders, i.e. ferrite, neodymium, and/or samarium cobalt, and can be divided into isotropic magnets and anisotropic full-density magnets.

The Hot-pressed isotropic Neodymium magnet is produced by rapidly quenched Neodymium magnetic powder under high temperature through compression.The hot-pressed anisotropic NdFeB magnet is mainly an anisotropic radially oriented ring magnet produced through compression and extrusion deformation by rapidly quenched NdFeB magnetic powder under high temperatures.

Hot-Pressed NdFeB Magnets Offer Several Advantages over Sintered NdFeB magnets:

1. Hot-pressed NdFeB magnets excel in micro and small applications, enabling the production of small-diameter (s15mm)ring magnets.
2. The hot-pressed magnetic ring process maintains excellent magnetic properties across varying wall thicknesses and diameters.
3. Even without considering coating protection,hot-pressed magnetic rings exhibit good anti-corrosion performance.
4. Hot-pressed magnetic rings boast a robust structure, exhibiting better toughness and bending strength than sintered neodymium magnetic rings.
5. Hot-pressed ring magnets offer a higher cost-performance ratio, faster delivery times, and excellent temperature resistance performance.
6. The magnet ring eliminates the need for a circular splice process. It can be magnetized for multi-poles, providing convenience for motor assembly.
7. The magnetic waveform can be customized as a square wave or other special waveforms.

Process Flow of Hot-Pressed Magnet

Hot-pressed neodymium magnets manufacturing process

Hot-pressed NdFeB Magnetic Properties

Hot-pressed NdFeB Ring Magnet Properties

How to choose the Hot-pressed magnets you need?

Hi,there:
I'm honored to serve you. if you could follow the steps below to confirm your need for magnets, I guarantee you will get the most accurate quote in the fastest time possible.

--- Tommy

For hot-pressed magnetic rings you just need to tell us the outer and inner diameters, and the height.
If the magnets have a special shape, they should ideally have drawings.
