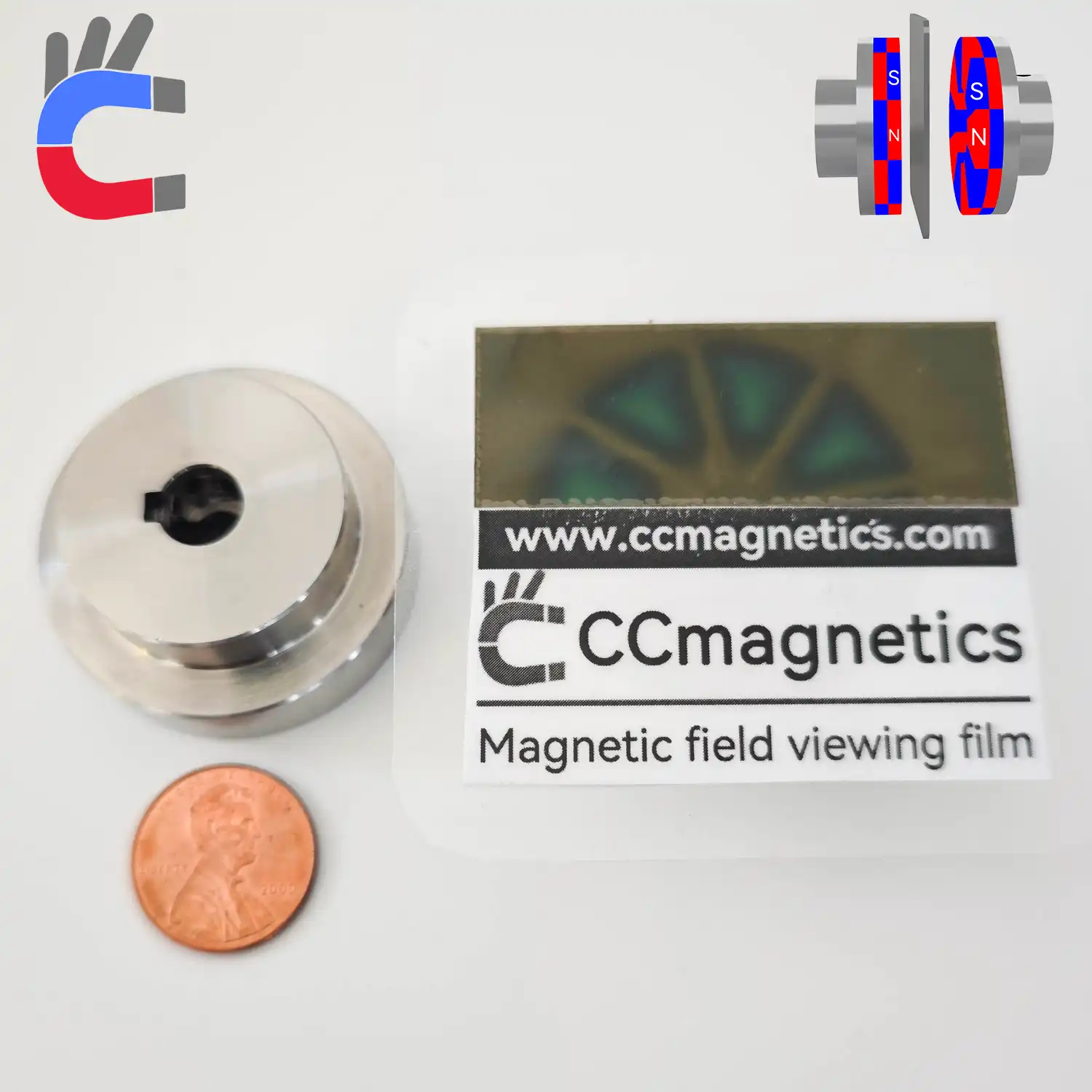

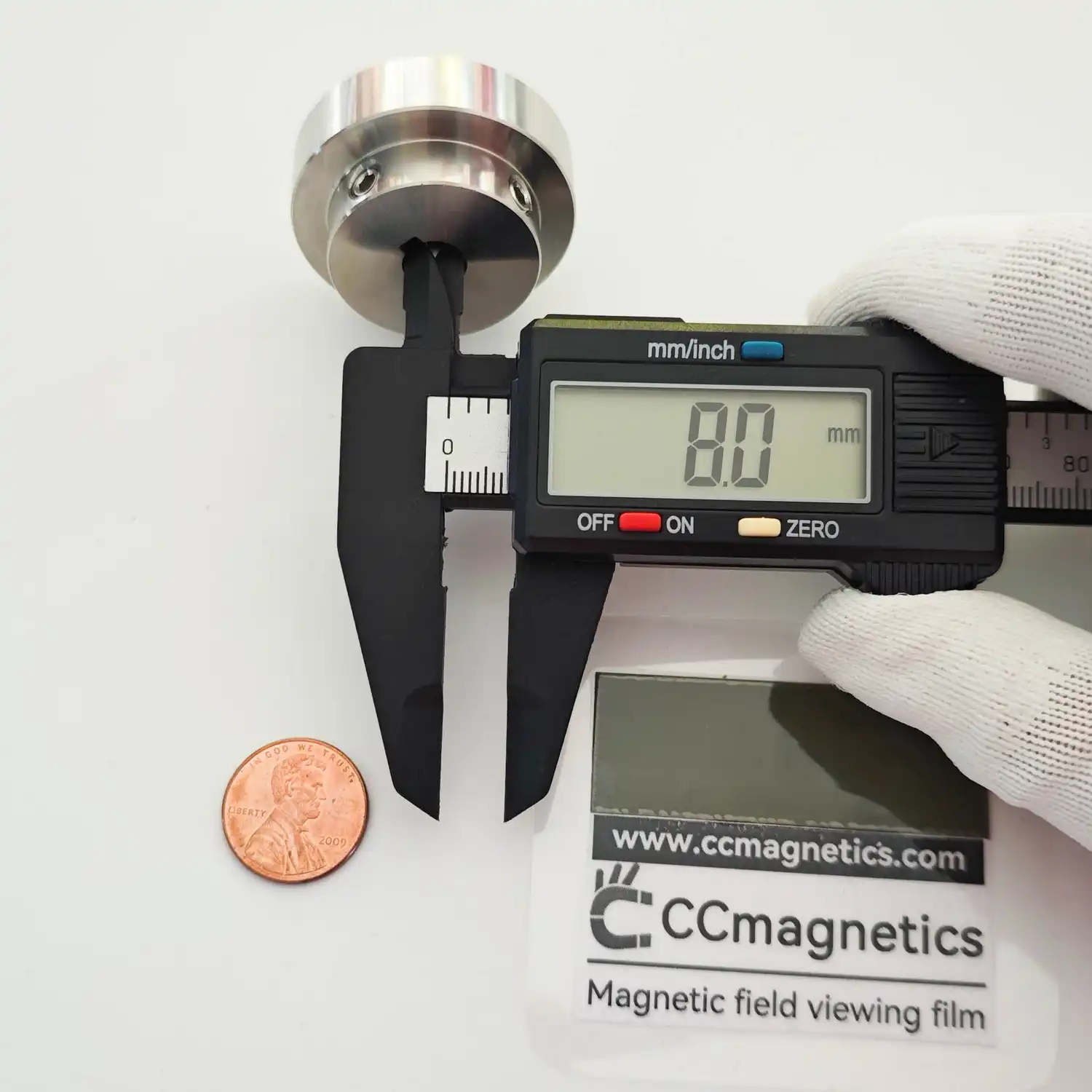

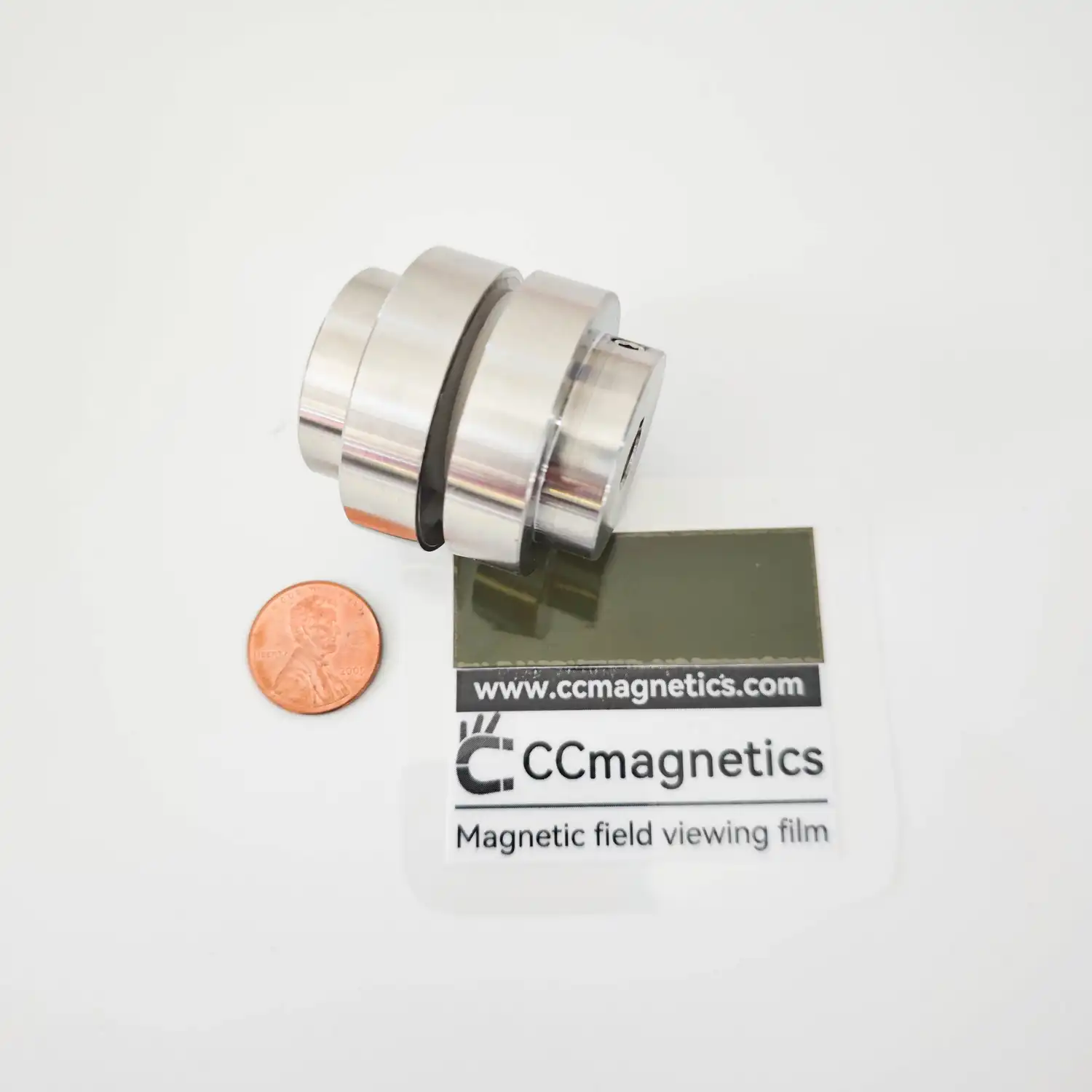

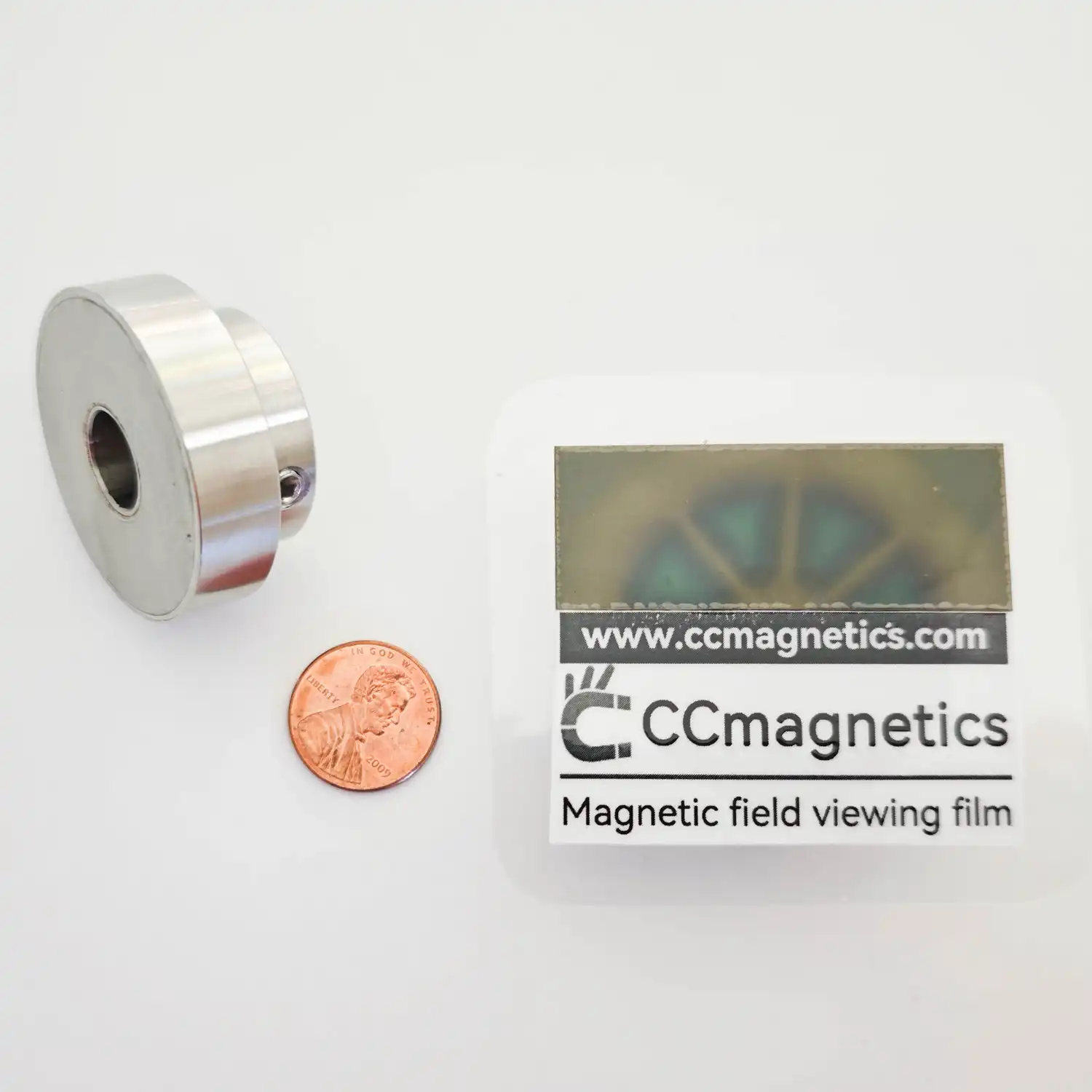

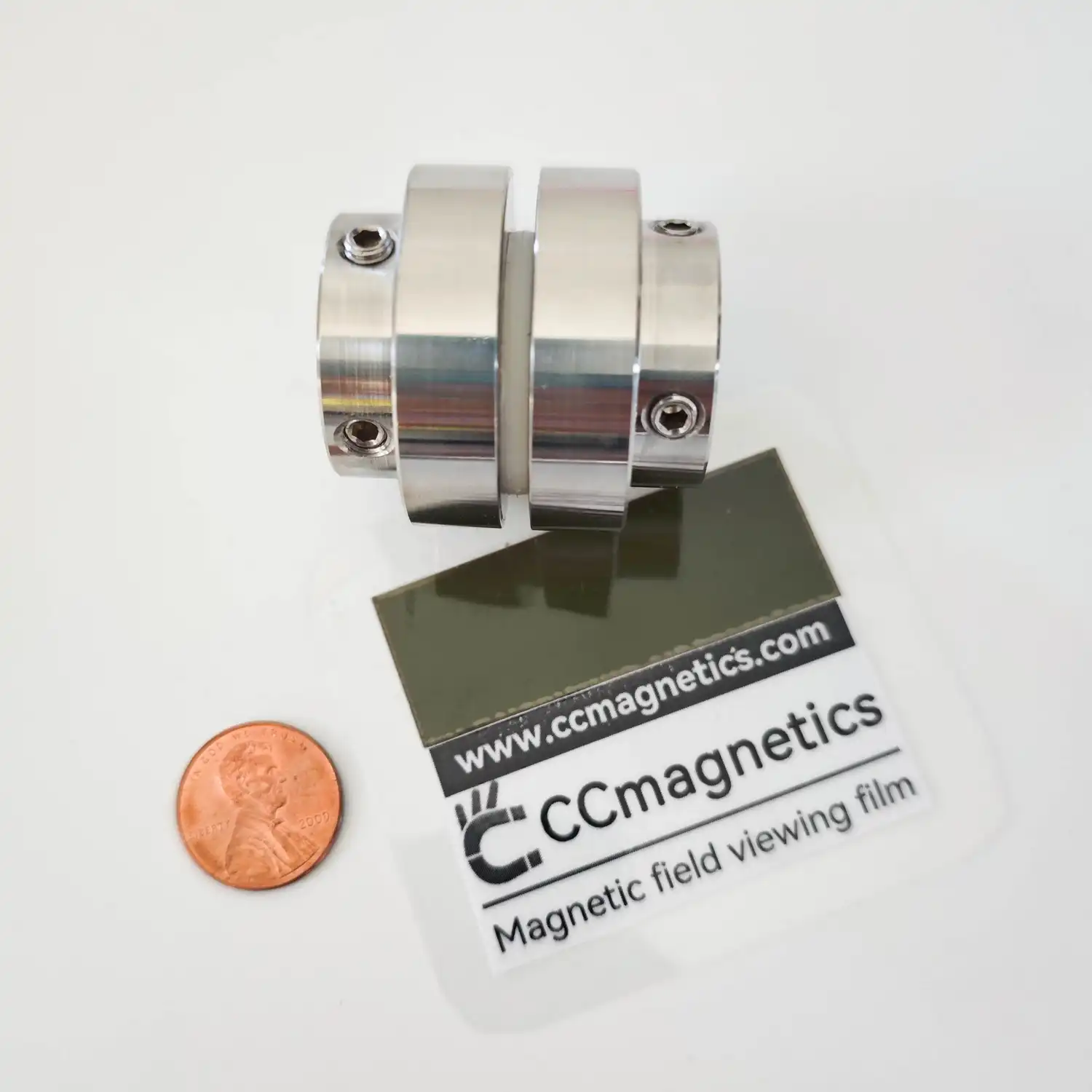

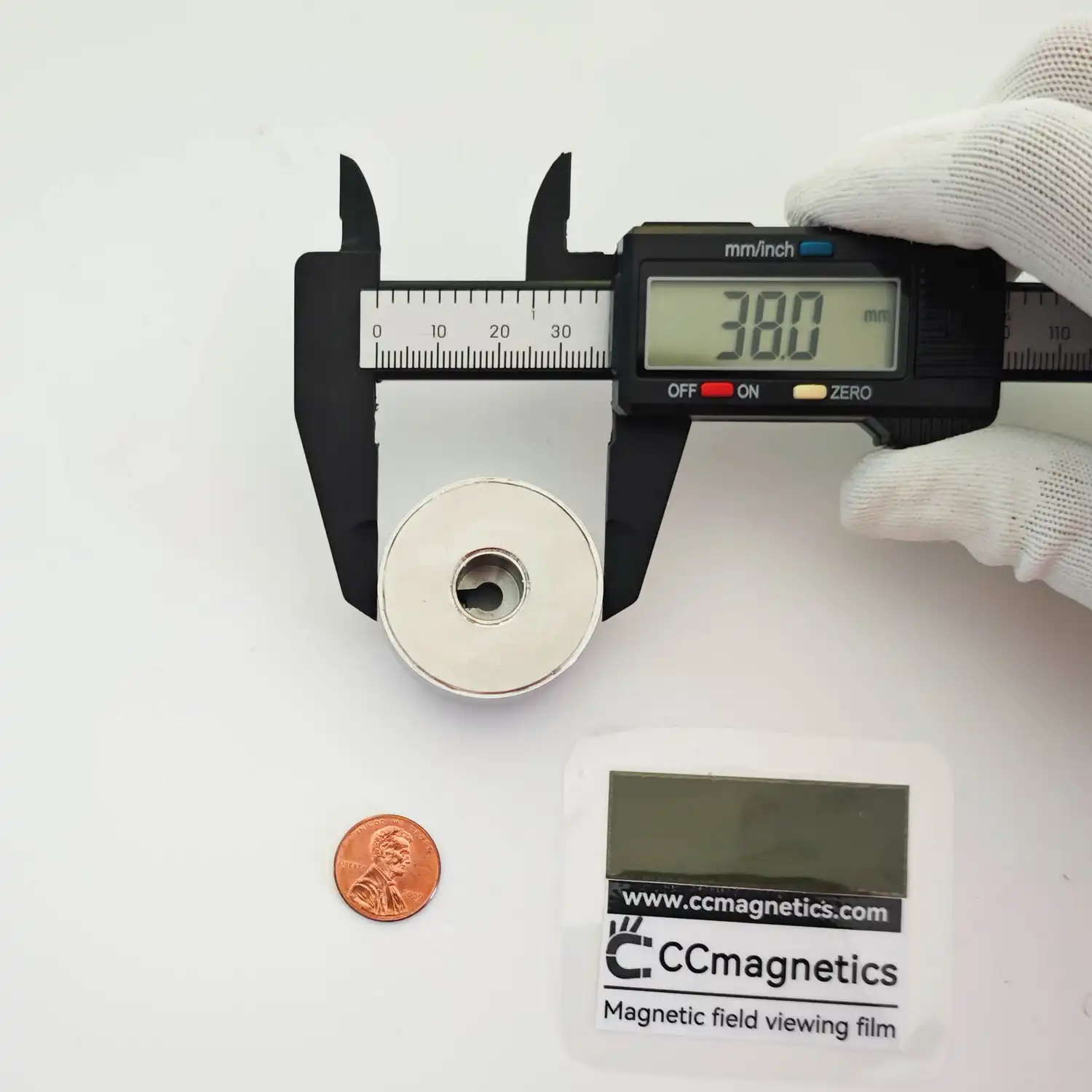

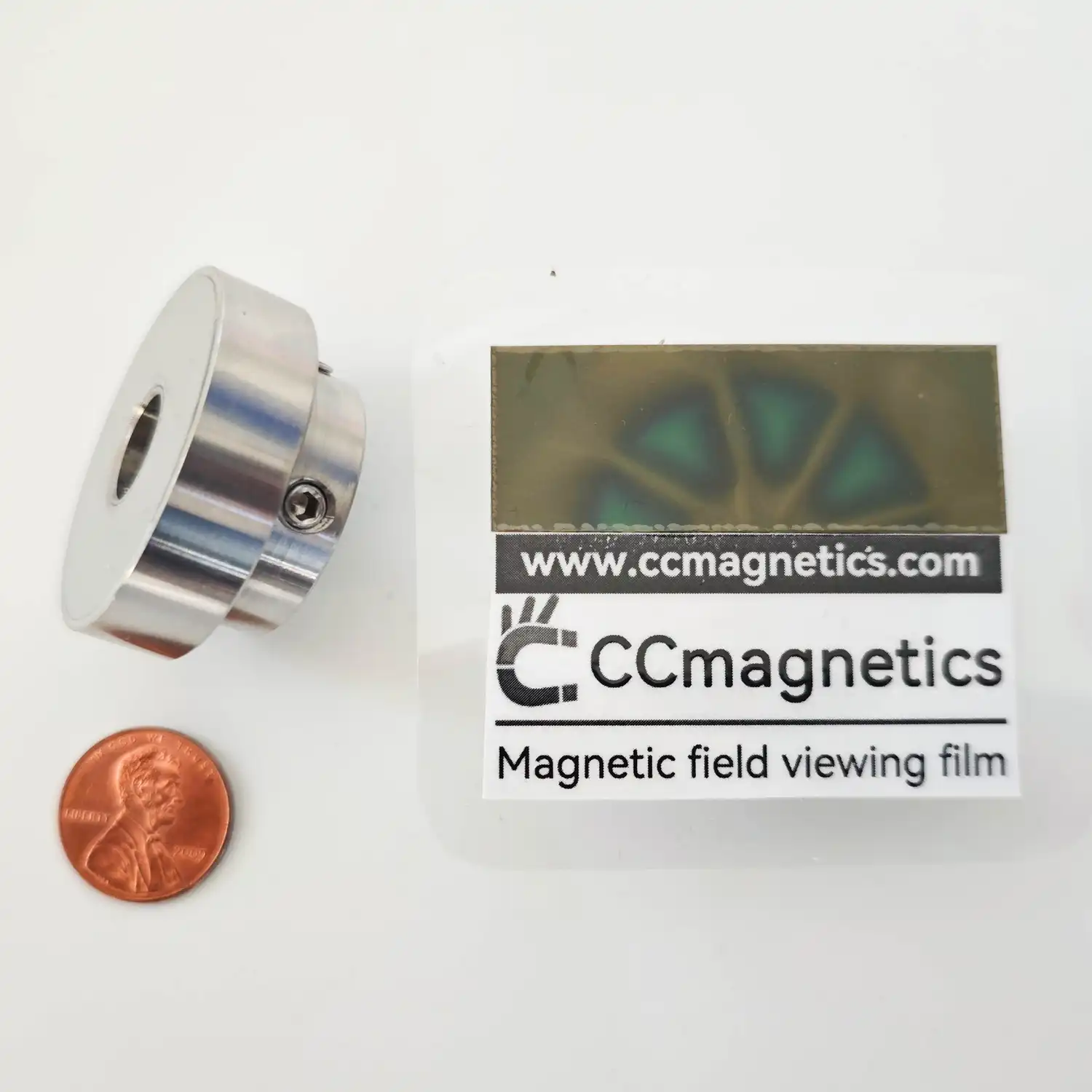

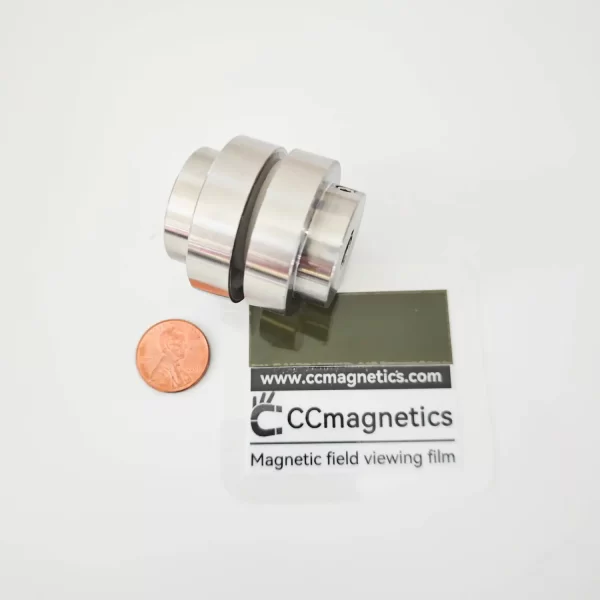

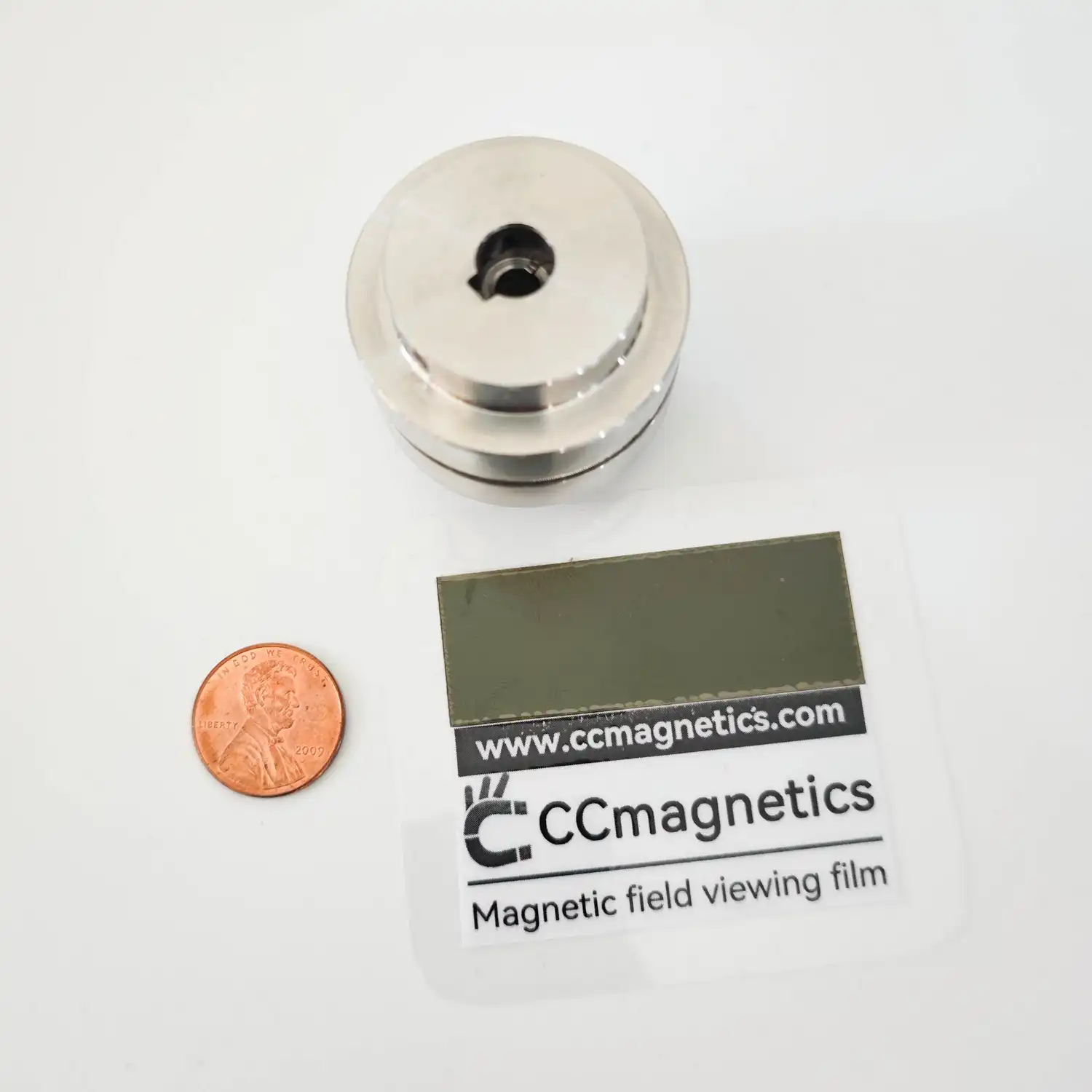

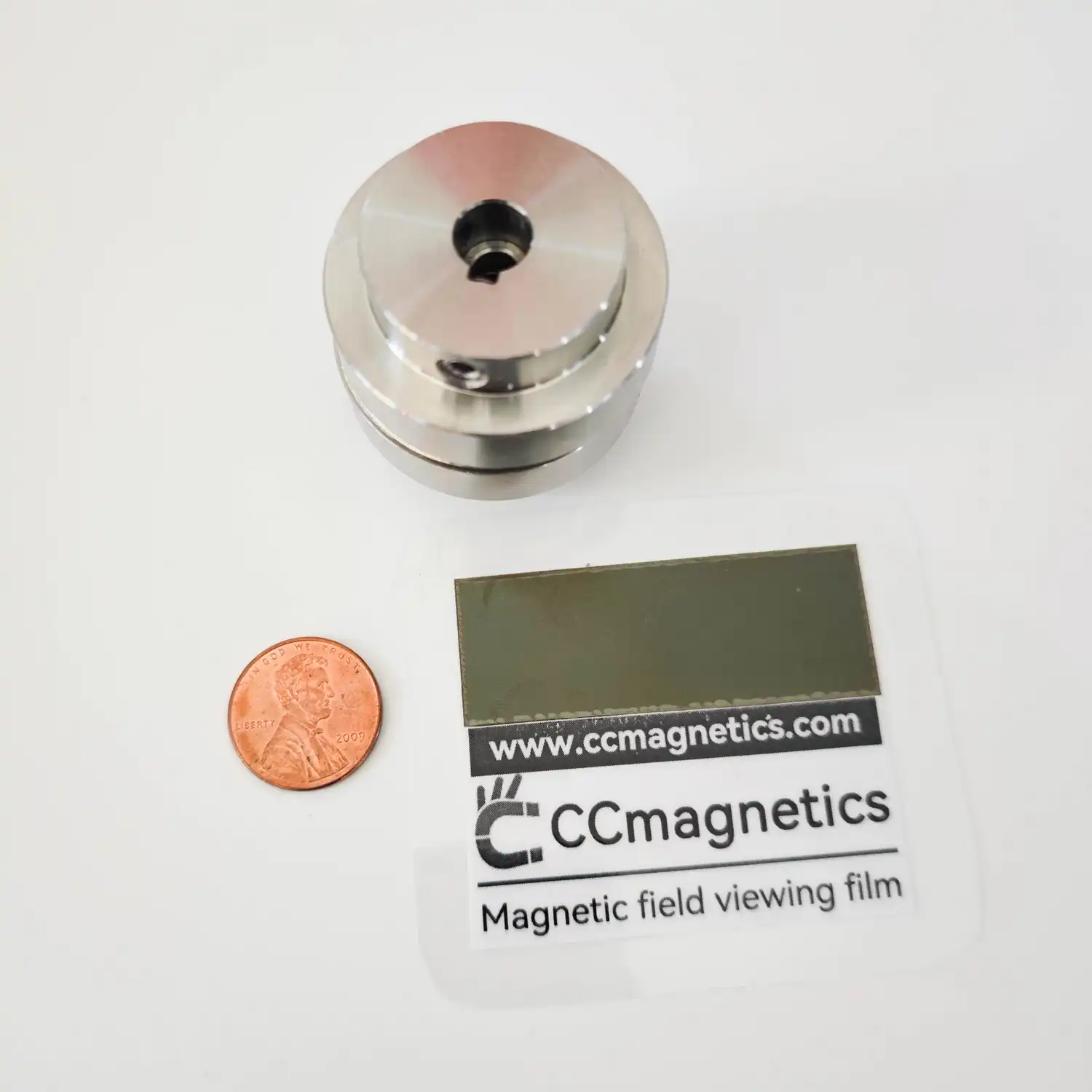

Advantages and Disadvantages of 316L Stainless Steel Disc Magnetic Couplings
- Advantages:
- Excellent corrosion resistance
- High strength and durability
- Easy to clean and maintain
- Can withstand high temperatures
- Hygienic and food-safe
- Can be used in seawater
- Disadvantages:
- Relatively heavy
- Less ductile than some other metals
What is disc magnetic couplings ?
Disc magnetic couplings provide a contactless means of torque transfer. They are predominantly utilized in pumps for applications requiring seal-less operation, thereby preventing the escape of corrosive, toxic, or flammable liquids into the atmosphere.
The concept is straightforward: Opposite poles attract. This fundamental principle enables the transmission of torque from one magnetic hub to another. By rotating one magnetic hub, the torque is magnetically conveyed to the companion hub. This transmission can occur through air or via a non-magnetic barrier like stainless steel or fiberglass, achieving complete isolation of the inner from the outer hub. The design excludes any contacting components.
Understanding disc magnetic couplings
Disc magnetic couplings are composed of two opposing discs that incorporate powerful rare earth magnets. Torque applied to one disc is conveyed across an air gap to the other disc. Thanks to their simple, flat design, these couplings can accommodate angular misalignment of up to 3 degrees or parallel misalignment of up to 1/4 inch while still transmitting a significant portion of the rotational torque. Moreover, an affordable flat barrier can be fabricated to separate the atmospheres or fluids surrounding the two discs.
Disc magnetic couplings parameter
| Part Number | (A) O.D | (B) I.D | (C) Height | D | E | F | G | H | M | Torque (interval: 1mm) | Torque (interval: 5mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XD12-B | 12 | 4,5,6 | 16 | 12 | -- | -- | -- | -- | M3 | 0.05N.m | -- |
| XD24-B | 24 | 6,8,10 | 18 | 18 | 10 | 5 | 6 | 3.2 | M4 | 0.42N.m | 0.04N.m |
| XD28-B | 28 | 6,8,10 | 18 | 20 | 10 | 5 | 10 | 4.2 | M4 | 0.75N.m | 0.12N.m |
| XD32-B | 32 | 8,10,12 | 18 | 24 | 10 | 5 | 12 | 4.2 | M5 | 1.95N.m | 0.32N.m |
| XD38-B | 38 | 8,10,12,15 | 18 | 28 | 10 | 5 | 15 | 5.2 | M5 | 2.98N.m | 0.82N.m |
| XD43-B | 43 | 12,15,20 | 20 | 30 | 12 | 5 | 15 | 5.2 | M5 | 3.8N.m | 1.2N.m |
| XD50-B | 50 | 12,15,20 | 22 | 34 | 13 | 6 | 20 | 5.5 | M5 | 4.2N.m | 1.5N.m |
| XD63-B | 63 | 15,18,20,25 | 25 | 36 | 15 | 6 | 26 | 5.5 | M5 | 11N.m | 4.5N.m |
| XD68-B | 68 | 15,18,20,25 | 30 | 40 | 18 | 8 | 30 | 6.2 | M5 | 16.2N.m | 7.8N.m |
| XD78-B | 78 | 18,20,25,30 | 32 | 42 | 18 | 10 | 33 | 6.2 | M5 | 18.5N.m | 10N.m |
| XD90-B | 90 | 18,20,25,30 | 45 | 60 | 18 | 17 | 35 | 9 | M5 | 19.1N.m | 21.2N.m |
| XD100-B | 100 | 18,20,25,30 | 50 | 65 | 25 | 20 | 40 | 10 | M5 | 20.3N.m | 22.2N.m |
| XD110-B | 110 | 25,35,40,45 | 25 | 70 | 25 | 15 | 45 | 35 | M5 | 9.1N.m | 8.2N.m |
| XD125-B | 125 | 30,35,40,45,50 | 38 | 70 | 32 | 18 | 52 | 41 | M8 | 20.1N.m | 23.3N.m |
| XD130-B | 130 | 30,35,40,45,50 | 38 | 76 | 32 | 21 | 52 | 41 | M8 | 33.8N.m | 30.05N.m |
| XD150-B | 150 | 40,45,50,55,60 | 42 | 60 | 32 | 18 | 48 | 38 | M8 | 61.2N.m | 54.1N.m |
| XD160-B | 160 | 45,50,55,60,70 | 45 | 65 | 46 | 15 | 55 | 45 | M12 | 69.5N.m | 59.7N.m |
Please Note:
- B represents the shaft diameter of the magnetic disk coupler. For example, if your shaft diameter is 15mm, the model you need to order is XD68-15.
- As the original manufacturer of magnetic disk couplers, we offer flexible customization options, including various magnet grades and materials.
- Volume discounts available. OEM orders welcome.
- Very low noise and vibration
- No wear No dust
- No heat generation
- Oil-free
- Power transmission through wall
- Torque limiter function
- Easy attaching and detaching
- Large tolerance for declination and eccentricity
Advantages of disc magnetic couplings
Magnetic disc vs co-axial coupling comparison
| Magnetic disc vs co-Axial coupling comparison |
 |
 |
|---|---|---|
| Coupling style | Magnetic disc couplings ( XD ) | Co-axial magnetic couplings ( XC ) |
| Permanent-magnetic | √ | √ |
| Contactless | √ | √ |
| Maintenance-free | √ | √ |
| Torsionally flexible | √ | √ |
| Low vibrations | √ | √ |
| Material | Standard: SS304. Options: Aluminum alloy 6061,Stainless steel 316L,PVC, available) |
Standard: SS304. Options: SS316/UNS S31603. |
| Containment shroud | None | Optional |
| Axial forces | High axial force which must be restrained | Coupling finds its own center with ~0 axial force |
| Shaft fixing method | Small size type A, big size type B & C available |
Type B |
| Slip torque adjustment | Air gap can be adjusted to increase or decrease slip torque |
Coupling hubs can be seperated axially to decrease slip torque (axial force will result) |
| Angular misalignment capacity | 3° Max | Ensure coupling hubs (or barrier if used) do not contact |
| Parallel misalignment capacity | 6.35mm (0.25in) Max | Ensure coupling hubs (or barrier if used) do not contact |
| Containment barrier | Simple flat barrier | Top-hat shaped barrier |
| Max. pressure resistance [bar] | Up to 80 bars depending on size | Up to 90 bars depending on size |
| Max. temperature resistance [°C] | 150/300 depending on magnet material | 150/300 depending on magnet material |
Shaft fixing method
Type A
setscrew
Type B
with feather keyway
and setscrew
Type C
clamping hub
single slot with
feather keyway
