About magnetic rack & pinion gears
A magnetic rack & pinion gear transmission system consists of a magnetic gear and a magnetic track. This proposal introduces a groundbreaking new type of transportation rack that can be easily transformed into a rack upon attachment. It incorporates a magnetic rack & pinion gear system that operates in two transmission modes: Parallel Type and Cross Type.

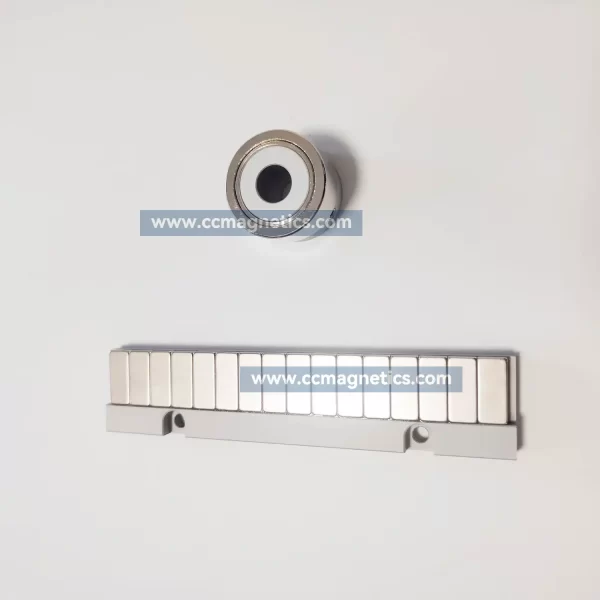

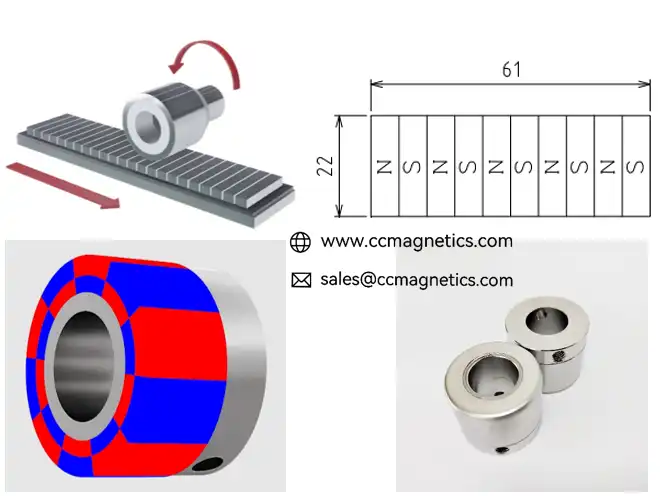

There are two types of magnetic rack & pinion gears, parallel type and cross type. Their transmission methods are different. You can refer to the following pictures:
 |
 |
|---|---|
| Pros of parallel type | Pros of Cross Type |
| 1. Stronger |
1. Smooth working process |
| 2. Lower price |
2. Smaller vibration during operation |
| 3. Any shaft diameter can be customized |
3. Any shaft diameter can be customized |
| 4. Any track length can be customized |
4. Any track length can be customized |
| Cons of parallel type | Cons of cross type |
| The vibration during operation is greater than the cross type with the same number of poles. |
The torque during operation is less than the parallel type with the same number of poles. The price is higher because the track poles are tilted. |
Product Parameter
Parallel Type: Pinion ( CJ ) outer diameters range from 13 mm to 45 mm, with custom shaft diameters. Magnetic track widths can be customized from 8 mm to 26.5 mm, and track lengths can be customized to any desired length.
Pinion parameter
| Part Number |
A | D | L | G | F | M | Pole Qty |
Torque (Gap:1mm) |
|---|---|---|---|---|---|---|---|---|
| PT1308P | 13 | 10,15,20 | 15 | 10 | 2.5 | M2.5 | 10P | 2.2N.m |
| PT1612P | 16 | 6,8 | 13 | 8 | 2.5 | M2.5 | 12P | 0.05N.m |
| PT2108P | 21 | 8,10,12 | 21 | 15 | 3 | M4 | 8P | 0.2N.m |
| PT2218P | 22 | 12,10,8 | 18 | 12 | 3 | M4 | 18P | 0.13N.m |
| PT2412P | 24 | 10,12 | 19 | 12 | 3.5 | M4 | 12P | 0.4N.m |
| PT2612P | 26 | 8,10,12,15 | 21 | 14 | 3.5 | M4 | 12P | 0.45N.m |
| PT2618P | 26 | 8,10,12,15 | 21 | 14 | 3.5 | M4 | 18P | 0.21N.m |
| PT2812P | 28 | 10,12,15 | 25 | 14 | 3.5 | M4 | 12P | 0.32N.m |
| PT3010P | 30 | 8,10,12,15 | 25 | 18 | 3.5 | M4 | 10P | 0.39N.m |
| PT3210P | 32 | 10,12,15 | 30 | 20 | 4 | M4 | 10P | 0.8N.m |
| PT3512P | 35 | 10,12,15,20 | 32 | 21.5 | 5.25 | M5 | 12P | 1.1N.m |
| PT3518P | 35 | 10,12,15,20 | 32 | 21.5 | 5.25 | M5 | 18P | 0.7N.m |
| PT3916P | 39 | 10,15,20 | 35.8 | 26.5 | 5 | M5 | 16P | 1.5N.m |
| PT4510P | 45 | 10,15,20 | 34 | 25 | 4 | M5 | 10P | 2.2N.m |
Magnetic track parameter
| Magnetictrack width | Aswide as the magnet part of the pinion gear. |
|---|---|
| Magnetictrack lenth | Customizable |
| Material | Neodymiumsintered magnet / 6061 aluminium alloy |
| Surfacetreatment | Ni-Cu-Ni( Magnets ) |
| Max.operatingtemperature | 80°C |
Note:
- When there are few magnetic poles, the torque becomes larger. The disadvantage is that the transmission stability is poor and there is shaking during transmission;
- When there are many magnetic poles, the stability is good, but the transmission torque will become smaller. Mixing of medicines and chemicals is suitable for magnetic gear with multiple magnetic poles.
- It is easy to connect and remove racks, and you can change the length according to your imagination.
- Since it is non-contact, no lubricating oil or grease is required.
- The rack mount base can be provided by the customer or customized by us.
- Please contact us for the rack base material, surface treatment, and magnet installation method.
