Description:

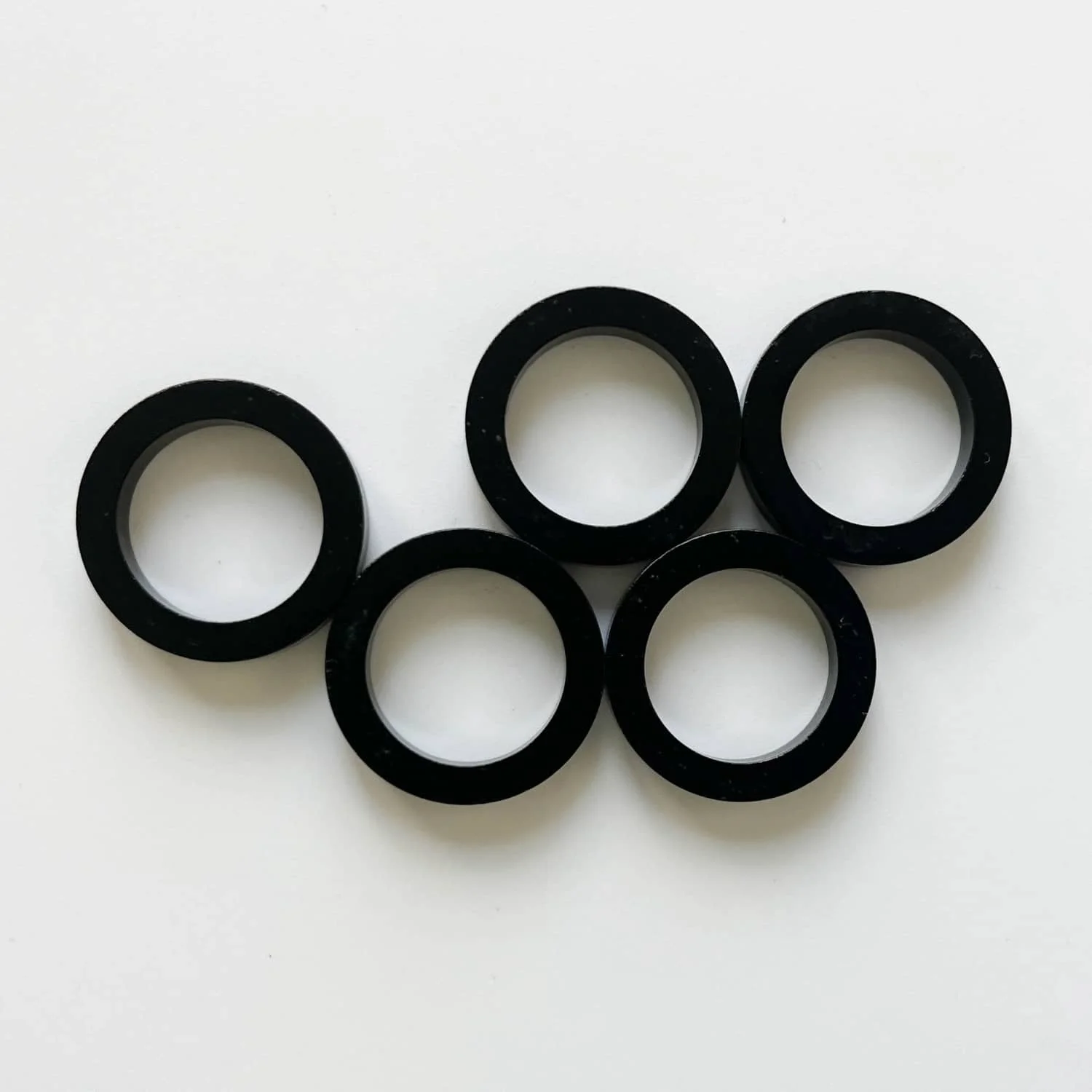

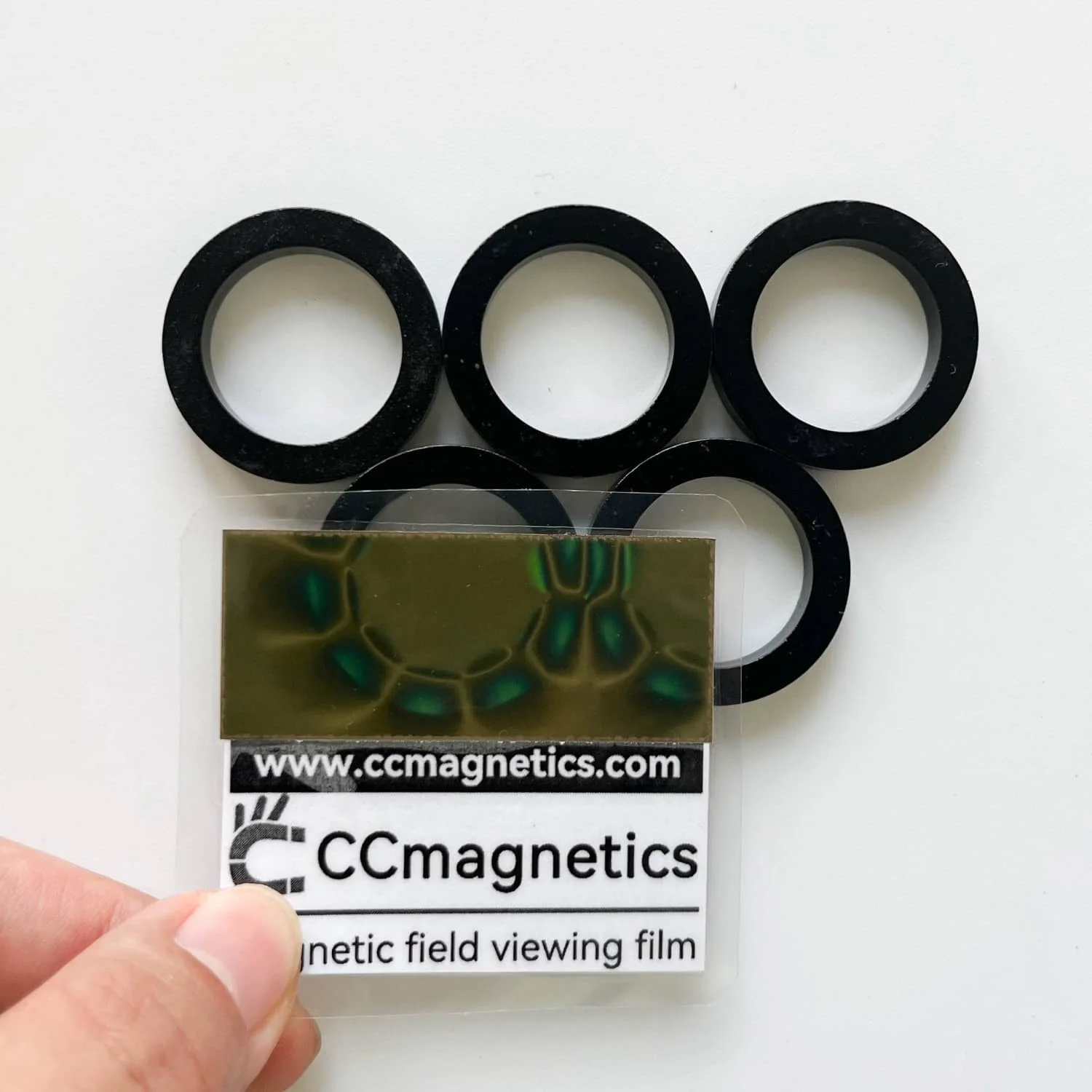

Our 18mm outer diameter magnetic rings provide versatile solutions for a wide range of applications, including automotive idle speed motors, brushless dc motors, robotic vacuum cleaners, and encoders. Manufactured using high-quality injection molded neodymium iron boron and ferrite materials, our rings offer reliable magnetic performance, dimensional accuracy, and excellent temperature stability. To meet your specific requirements, we offer customization options such as varying magnetic grades, coatings, and dimensions. While custom orders are available, we recommend exploring our standard product line for cost-effective solutions.
Specification:
Magnetization method
Axial, Rotary
Radial, Rotary
Inter, Radial, Rotary
| O.D (mm) |
I.D (mm) |
Thick (mm) |
Pole Qty | Material | Surface magnetic field |
Magnetization method |
|---|---|---|---|---|---|---|
| 18 | 3.15 | 4 | 32P | Injection molded neodymium magnets | 140-150mT | Radial, Rotary |
| 18 | 5 | 4 | 32P | Injection molded neodymium magnets | 60-70mT | Radial, Rotary |
| 18 | 12 | 4 | 32P | Injection molded neodymium magnets | 60-70mT | Radial, Rotary |
| 18 | 3.15 | 3.6 | 8P | Injection molded neodymium magnets | 140-150mT | Axial, Rotary |
| 18 | 3.15 | 3.6 | 10P | Injection molded neodymium magnets | 140-150mT | Axial, Rotary |
| 18 | 3.15 | 3.6 | 24P | Injection molded neodymium magnets | 60-63mT | Axial, Rotary |
| 18 | 4.5 | 4 | 32P | Copper metal ring/ injection molded neodymium magnets | 60-70mT | Radial, Rotary |
| 18 | 2.3 | 4 | 6P | Injection molded neodymium magnets | 140-150mT | Axial, Rotary |
| 18 | 2.3 | 4 | 8P | Injection molded neodymium magnets | 140-150mT | Axial, Rotary |
| 18 | 2.3 | 4 | 10P | Injection molded neodymium magnets | 140-150mT | Axial, Rotary |
| 18 | 2.3 | 4 | 32P | Injection molded neodymium magnets | 140-150mT | Radial, Rotary |
| 18 | 2 | 4 | 8P | Injection molded neodymium magnets | 140-150mT | Radial, Rotary |
| 18 | 2 | 4 | 24P | Injection molded neodymium magnets | 140-150mT | Axial, Rotary |
| 18 | 2 | 4 | 32P | Injection molded neodymium magnets | 140-150mT | Radial, Rotary |
| 18 | 6 | 24 | 2P | Injection molded ferrite magnets | 95-110mT | Radial, Rotary |
| 18.3 | 7 | 30 | 4P | Ferrite magnets | 65-70mT | Radial, Rotary |
| 18.3 | 8 | 30 | 4P | Ferrite magnets | 160-170mT | Radial, Rotary |
Millimeters to inches conversion table
The fraction inches are rounded to 1/64 resolution.
| Millimeters(mm) | Inches(") (decimal) |
Inches(") (fraction) |
|---|---|---|
| 0.01mm | 0.0004″ | 0″ |
| 0.1 mm | 0.0039 ″ | 0 ″ |
| 1 mm | 0.0394 ″ | 3/64 ″ |
| 2 mm | 0.0787 ″ | 5/64 ″ |
| 3 mm | 0.1181 ″ | 1/8 ″ |
| 4 mm | 0.1575 ″ | 5/32 ″ |
| 5 mm | 0.1969 ″ | 13/64 ″ |
| 6 mm | 0.2362 ″ | 15/64 ″ |
| 7 mm | 0.2756 ″ | 9/32 ″ |
| 8 mm | 0.3150 ″ | 5/16 ″ |
| 9 mm | 0.3543 ″ | 23/64 ″ |
| 10 mm | 0.3937 ″ | 25/64 ″ |
| 20 mm | 0.7874 ″ | 25/32 ″ |
| 30 mm | 1.1811 ″ | 1 3/16 ″ |
| 40 mm | 1.5748 ″ | 1 37/64 ″ |
| 50 mm | 1.9685 ″ | 1 31/32 ″ |
| 60 mm | 2.3622 ″ | 2 23/64 ″ |
| 70 mm | 2.7559 ″ | 2 3/4 ″ |
| 80 mm | 3.1496 ″ | 3 5/32 ″ |
| 90 mm | 3.5433 ″ | 3 35/64 ″ |
| 100 mm | 3.9370 ″ | 3 15/16 ″ |
Note:If you require sensor recommendations, please contact our sales representatives and we will provide you with suggestions for pairing them.
