Description:

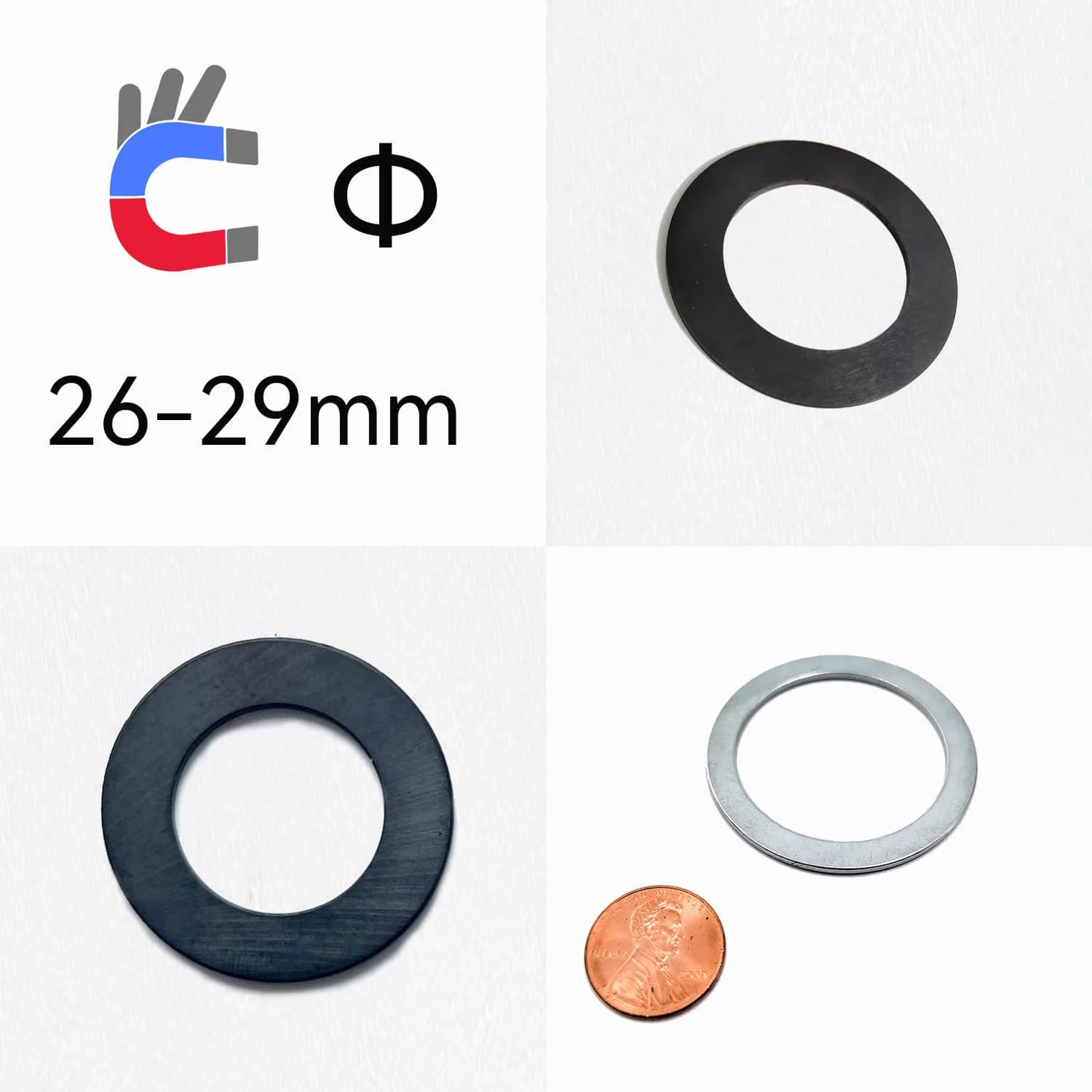

CCmagnetics offers a wide range of 26mm-33mm magnetic rings for various applications, including brushless DC motor rotors, automotive speed sensing, and industrial automation. Our products are made from a variety of materials such as ferrite, injection molded ferrite, bonded neodymium, and injection molded neodymium, and are available with 2 to 40 poles. With global shipping and door-to-door delivery, we serve customers worldwide.
Specification:
Magnetization method
Axial, Rotary
Radial, Rotary
Inter, Radial, Rotary
| O.D (mm) |
I.D (mm) |
Thick (mm) |
Pole Qty | Material | Surface magnetic field |
Magnetization method |
Comments |
|---|---|---|---|---|---|---|---|
| 26 | 21 | 40 | 4P | Bonded neodymium magnets | 140-150mT | Rotary,Radial | Strong Magnet Rotor for Brushless DC Motor |
| 26 | 18 | 5 | 8P | Bonded neodymium magnets | 180-200mT | Rotary,Radial | Hall Effect Magnet for Motor |
| 26 | 17 | 5.1 | 8P | Injection molded neodymium magnets | 110-120mT | Rotary,Radial | Speed Control Magnet for Power Tools |
| 26.5 | 21 | 21.3 | 4P | Bonded neodymium magnets | 180-190mT | Rotary,Radial | Brushless Motor Rotor Magnet |
| 26.5 | 21 | 21.3 | 10P | Bonded neodymium magnets | 200mT | Rotary,Radial | Strong Magnet Rotor for Brushless DC Motor |
| 27.4 | 18 | 12 | 18P | Injection molded ferrite magnets | 170-180mT | Rotary,Radial | Hall Effect Magnetic Ring |
| 28 | 13 | 8 | 24P | Ferrite magnets | 95-100mT | Rotary,Radial | Magnetic Encoder for DC Motor |
| 28.7 | 3.15 | 13.93 | 2P | Injection molded ferrite magnets | 50-60mT | Rotary,Radial | Fan Motor Rotor |
| 29 | 20 | 4 | 8P | Bonded neodymium magnets | 185-190mT | Rotary,Radial | Speed Measurement Magnet for Brushless AC Motor Encoder |
| 28 | 20 | 5 | 10P | Bonded neodymium magnets | 185-190mT | Rotary,Radial | Speed Measurement Magnet for Brushless AC Motor Encoder |
| 29 | 20 | 4 | 16P | Bonded neodymium magnets | 185-190mT | Rotary,Radial | Speed Measurement Magnet for Brushless AC Motor Encoder |
| 30 | 24 | 2.5 | 1P | Injection molded ferrite magnets | 50-60mT | Rotary,Radial | Radially Magnetized Magnet |
| 30 | 10 | 3 | 40P | Ferrite magnets | 95-100mT | Rotary, Axial | Encoder Magnet for Logistics Robot |
| 30 | 8 | 5 | 6P | Injection molded neodymium magnets | 110-120mT | Rotary, Axial | Speed Control Magnetic Ring for Push Rod Motor |
| 31 | 29 | 23.6 | 6P | Injection molded ferrite magnets | 160-170mT | Rotary,Radial | Rotor Magnet for Household Handheld Booster Pump |
| 32 | 42.3 | 19 | 8P | Bonded neodymium magnets | 260-270mT | Rotary,Radial | Magnet for Inkjet Printer Pressure Pump |
| 32 | 26 | 3 | 24P | Bonded neodymium magnets | 260-270mT | Rotary, Axial | Magnetic Encoder for Brushless DC Motor |
| 32.2 | 24 | 10 | 22P | Ferrite magnets | 900-100mT | Rotary,Radial | Motor Encoder Magnetic Ring |
| 33 | 20 | 31 | 6P | Injection molded ferrite magnets | 160-168mT | Rotary,Radial | Magnet for DC Water Pump |
| 33.5 | 29 | 6 | 32P | Injection molded ferrite magnets | 85-90mT | Rotary,Radial | Hall Effect Magnet for Motor |
